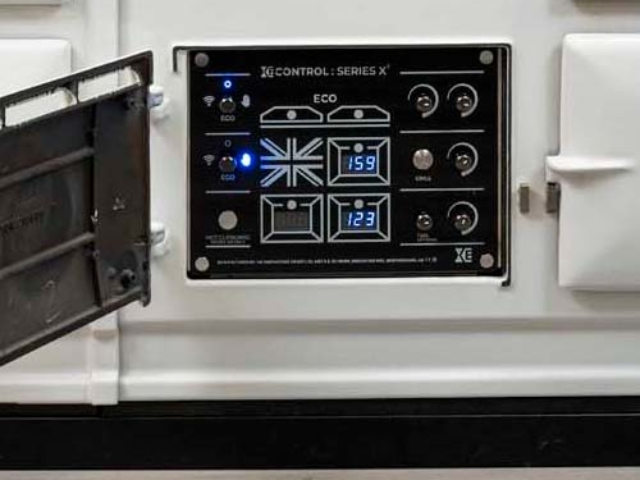

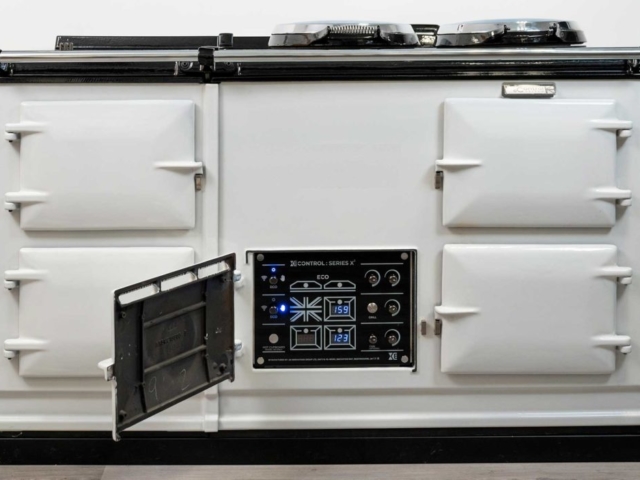

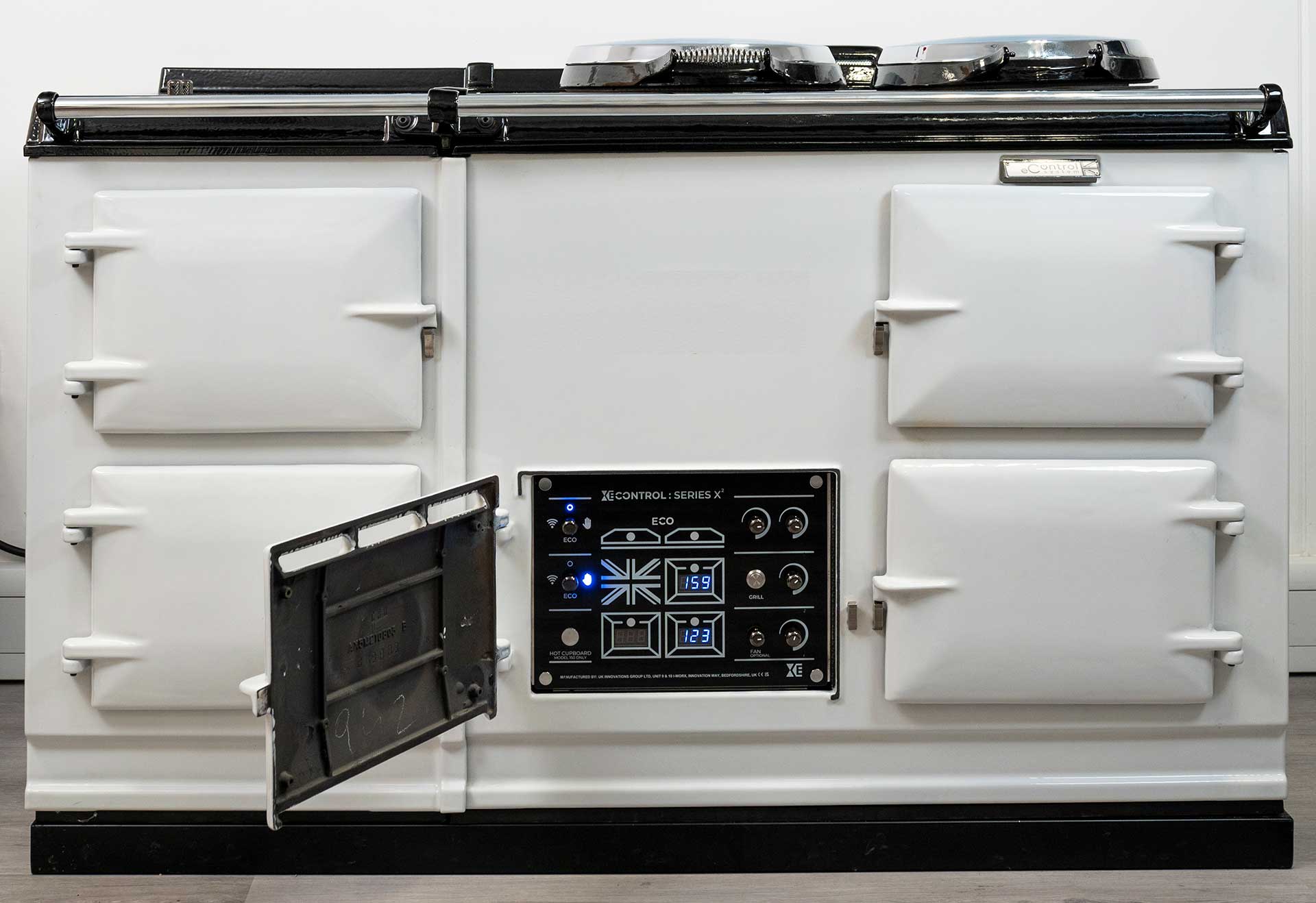

Learn why eControl: Series X2 is the only option to power your Aga cooker

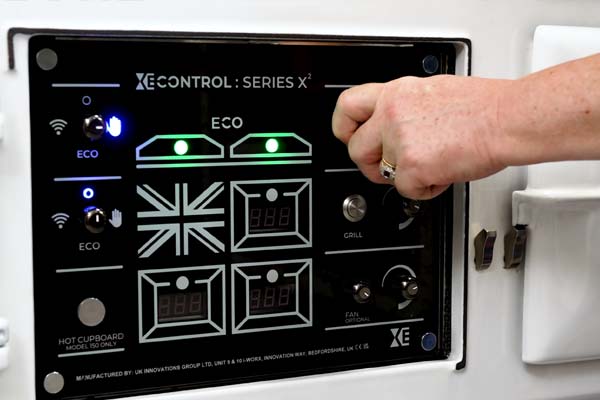

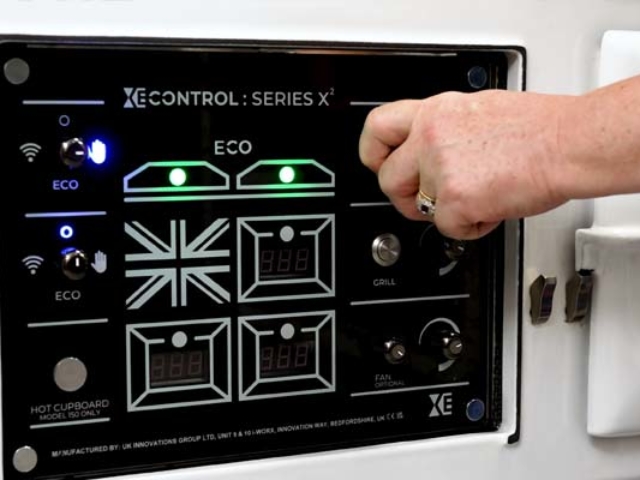

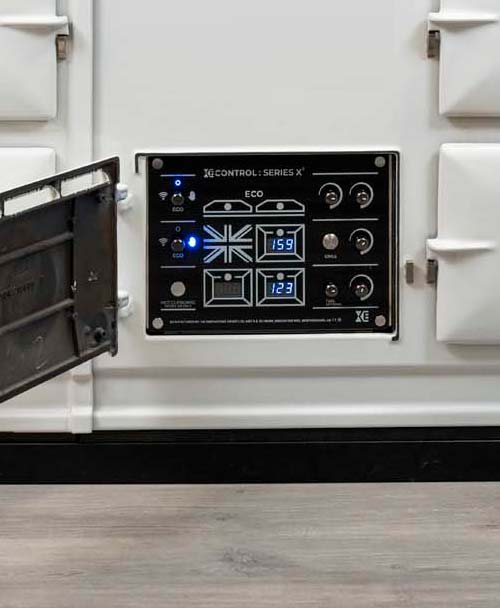

Series X2 is the new control system from eControl. It’s all about;

– Reducing running costs (significantly)
– Massively reducing carbon footprint
– Controlling ambient heat (A cooker for all seasons)
– Super fast heat up times
– Maximising Performance
– Amazing features and upgrades
– World class Warranty Support

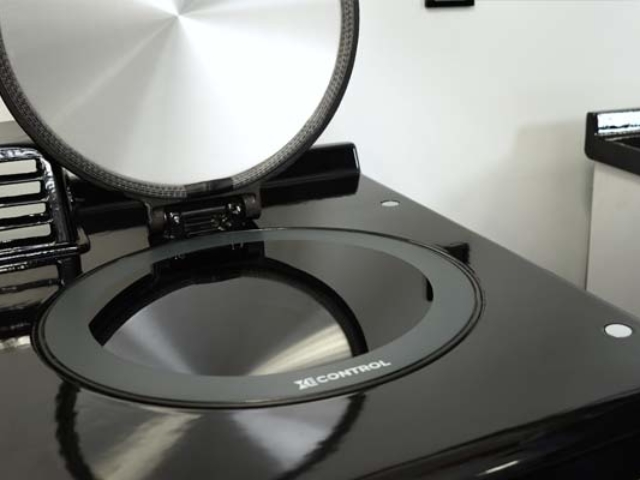

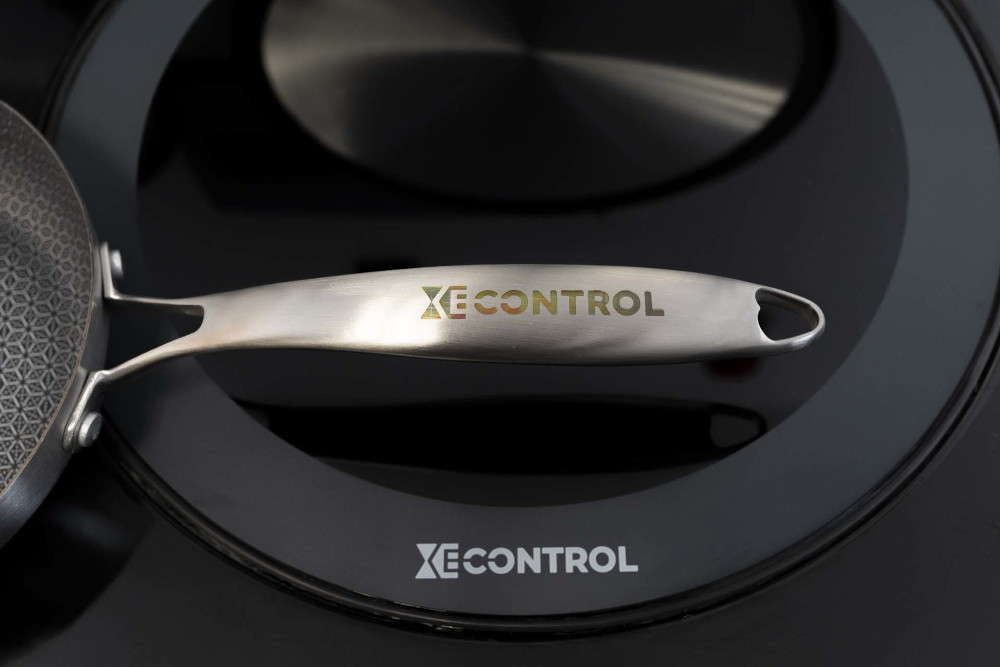

Hob Temperatures

Left and right hand side hobs – 0 to 370°C

ECO Mode left hand side – 200°C

ECO Mode Right hand side – 165°C

Oven temperatures

Top right hand side oven – 0 to 265°C

Bottom right hand side oven – 0 to 220°C

ECO Mode top right hand side oven – 180°C

Bottom left hand side oven (3 oven) – 220°C

Hot Cupboard – 120°C

X-Squared Hot Cupboard – 265°C

Power Sharing Technology

‘Power share’ technology is a highly progressive embedded feature employed in the X-Squared System meaning that it will draw less pro-rata in the ovens than if not all areas are in use at the same time. The same works vice-versa in that if not all areas on employed at any one time the employed areas will benefit from more available power leading to a more responsive experience. This is to say that the cooker is aware of what is happening in each respective area and add additional power to those areas that need it.

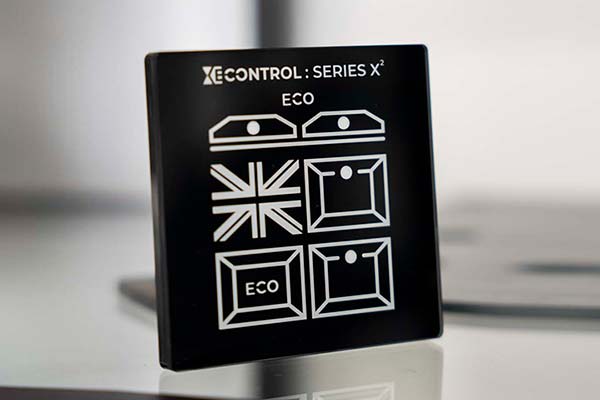

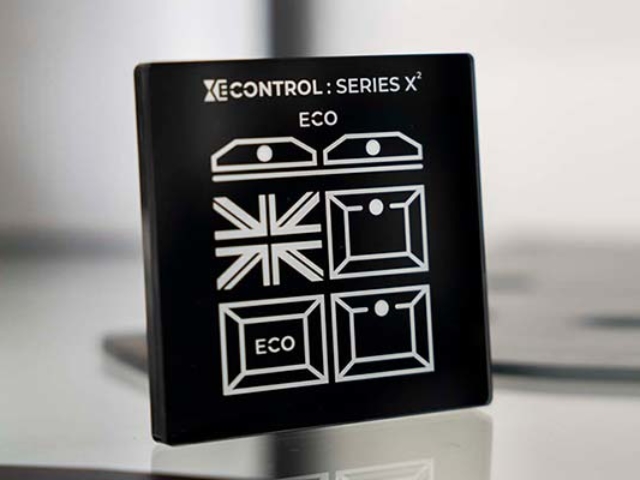

Wi-Fi Switch

The eControl Wi-Fi switch is a multipurpose external communication device developed with Samsung Electronics technology. This is a 6-channel switch which is hardwired through thin gauge 12v multicore cable which connects directly int the back of the X-Squared control box. The glass fronted switch also has;

• Capacitive touch screen user interface that can be used by the customer to manually select which areas of the appliance are on/off.
• The switch acts as an interface to communicate with the Bluetooth remote control.
• The switch communicates with the eControl App allowing remote control from the customer’s phone (from any location).

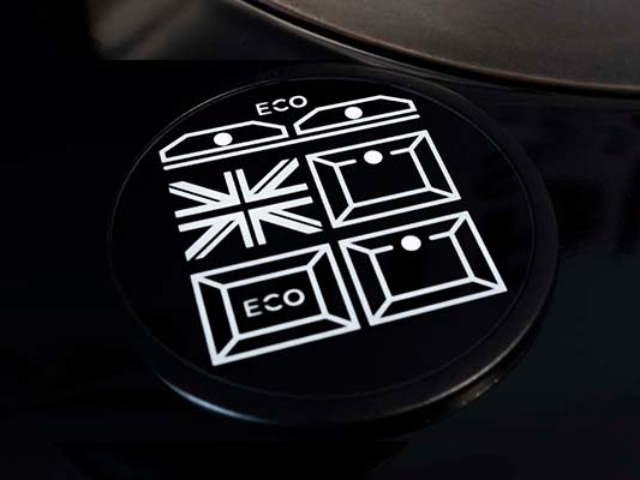

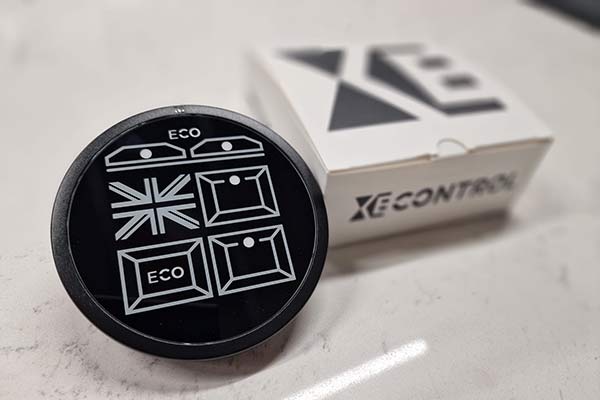

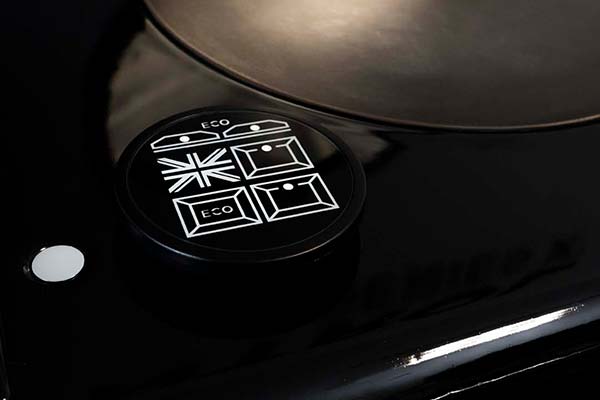

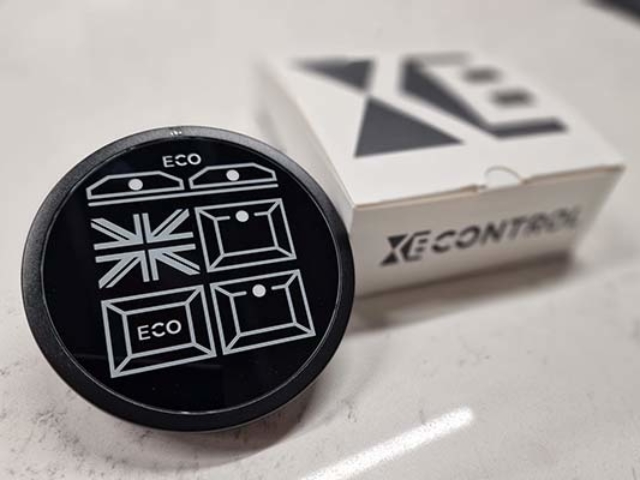

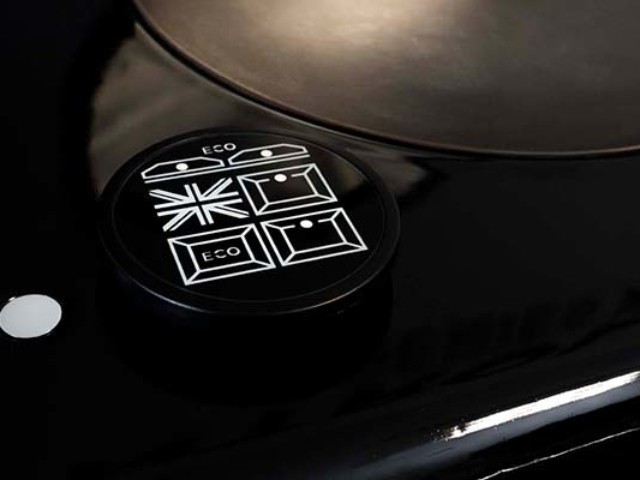

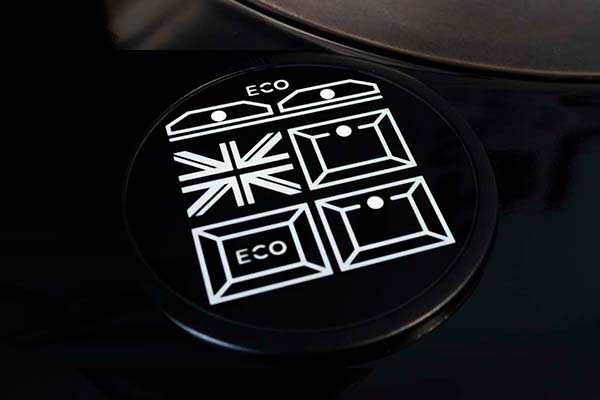

Bluetooth Handset

Experience seamless control with the eControl Bluetooth remote handset. This innovative battery-powered handset lets you manage your appliance effortlessly for ultimate convenience. The 6-channel handset lets the user select which area of the appliance is on/off. This is standard feature on all models controlling hobs, right hand ovens and ECO modes throughout. The Handset communicates directly with the wall switch.

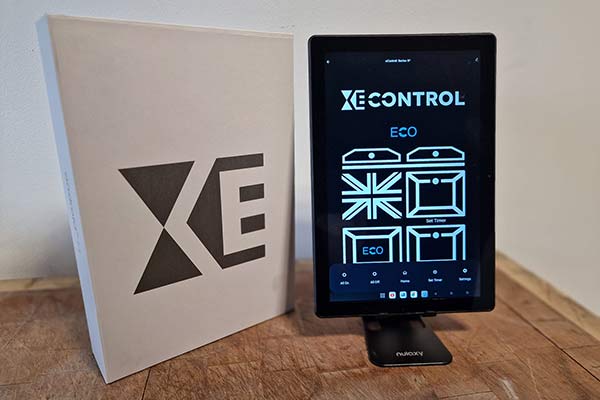

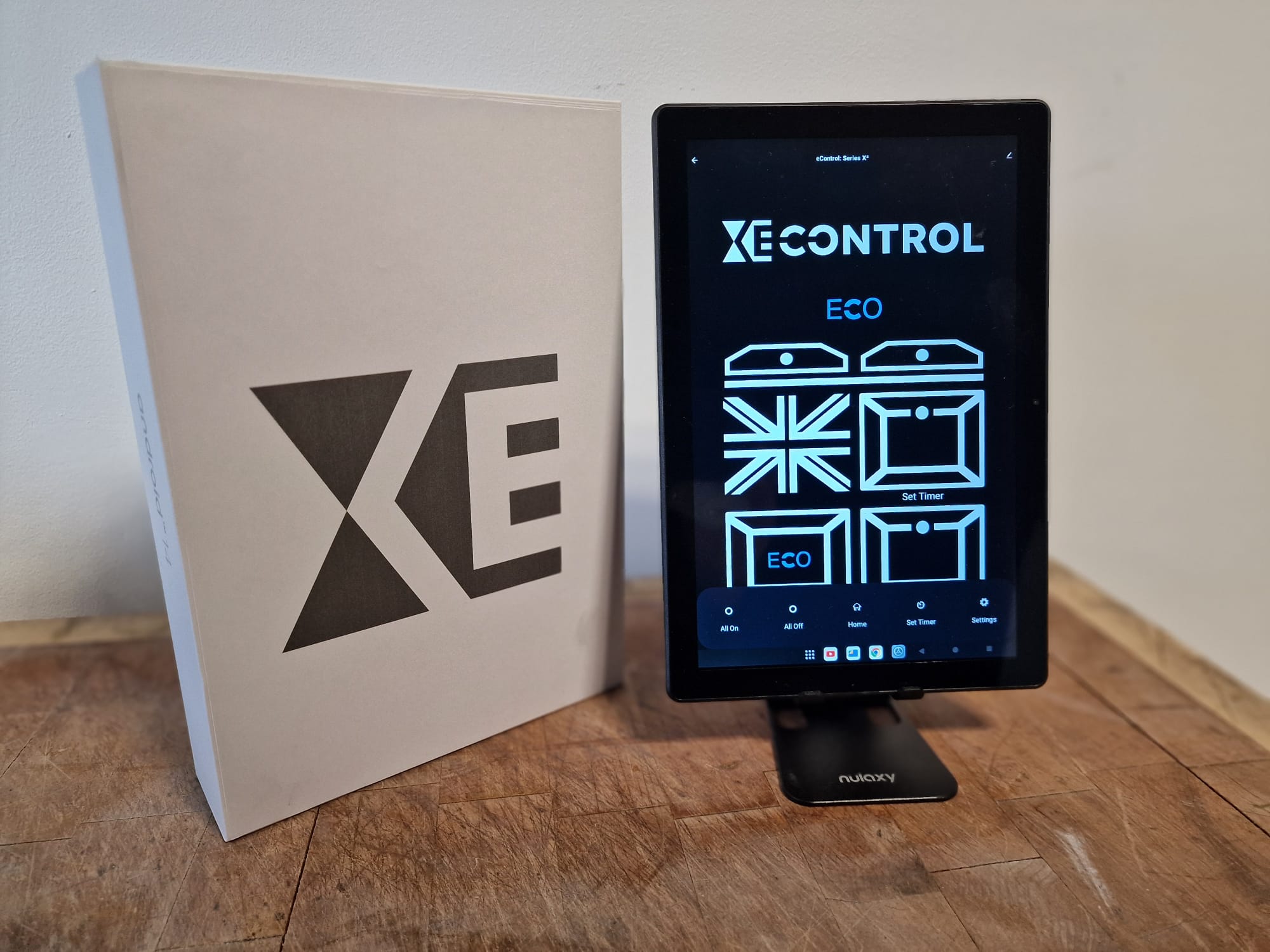

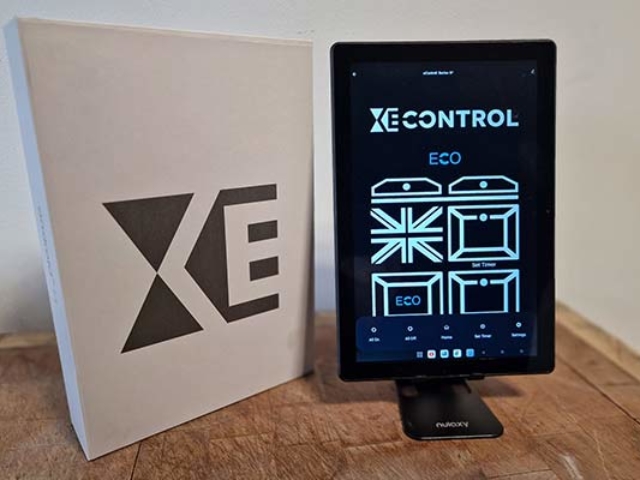

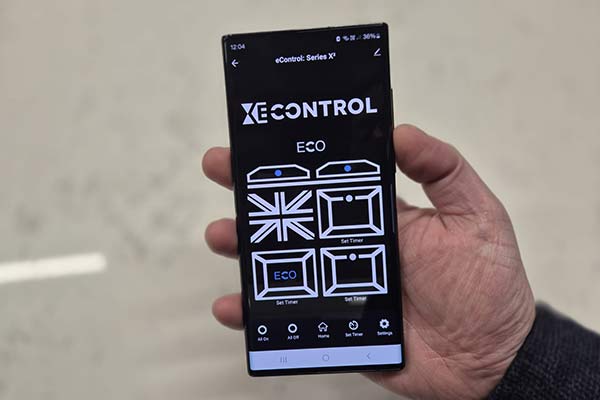

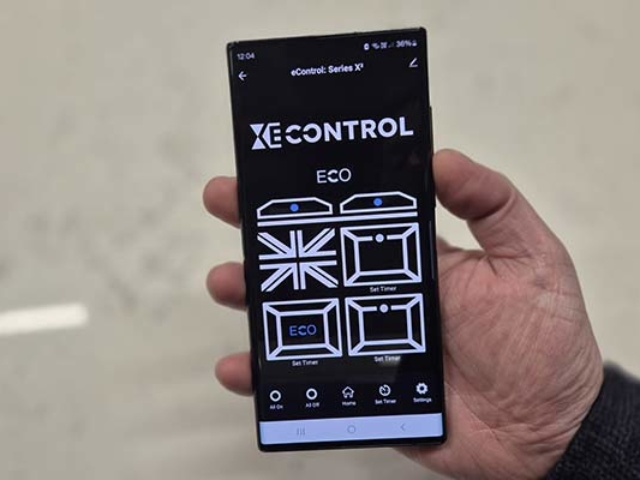

eControl Programmable App

The eControl consumer APP provides independent control over 6-channels plus programmable timer options for hobs and ovens.

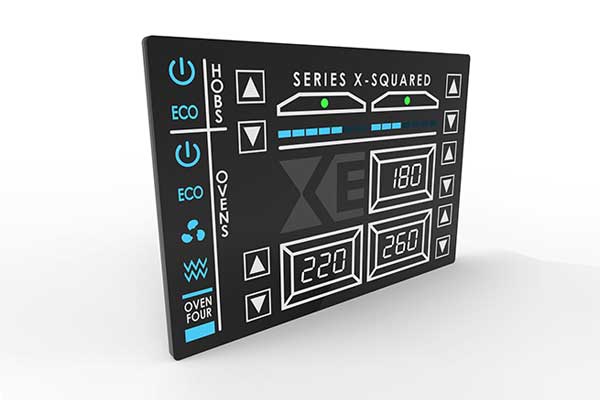

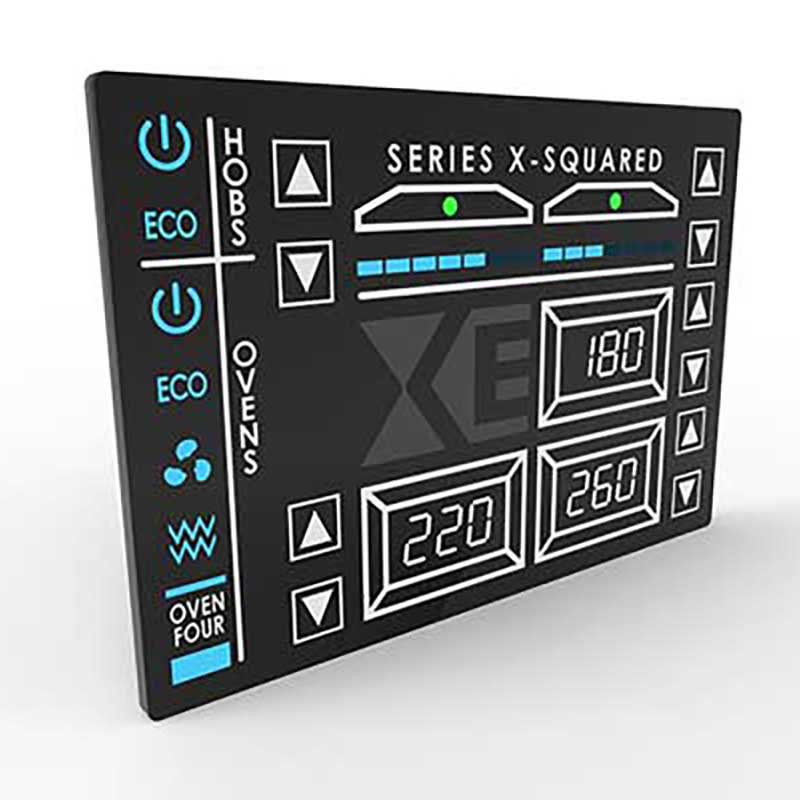

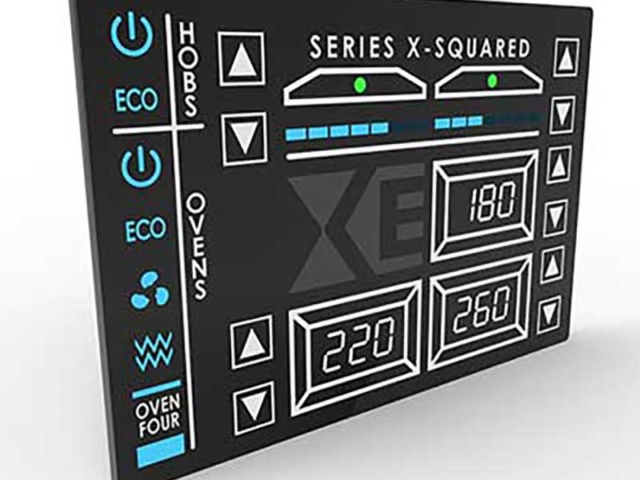

X-Touch Remote Panel

The groundbreaking X-Touch panel with its intuitive and stylish remote touch screen interface allows full temperature and zone control from your worktop. The glass touch-screen control panel has live and target temperatures displayed for all cast iron oven and a gradient bar read-out for hob temperatures in eight stages from off to full temperature. On the left hand side there is a bank of additional functions including ECO mode, Fan mode, Grill mode and Hot cupboard. This device is hard wired to the rear of the control panel using a thin gauge wire and is supplied with a sleek acrylic display stand. The X-Touch is an optional extra and can be retro-fitted at any time.

Grill Function

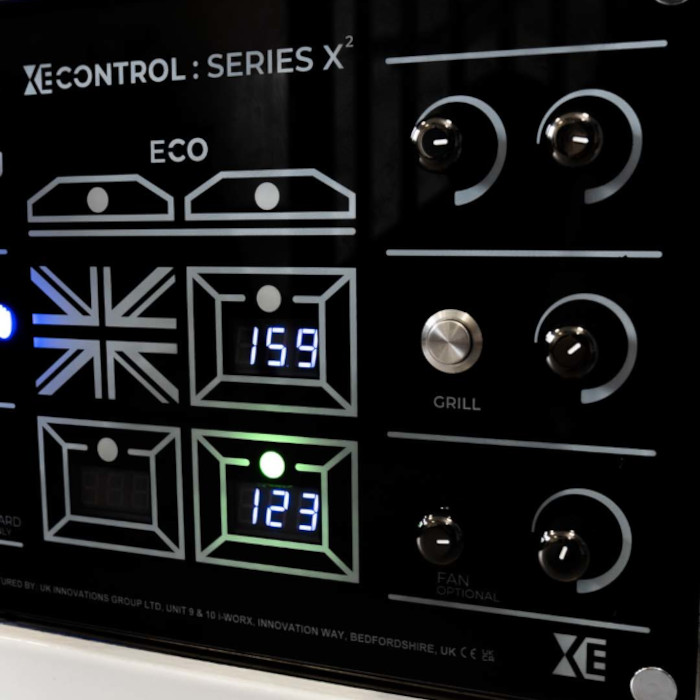

The X-Squared high-power grill can be activated from the main control panel or the X-Touch remote screen. This activates our twin element integrated heating elements for crisp perfect grilling results every time. When pressed the lower oven elements are deactivated and twin high-level elements are activated. The push switch will show an illuminated halo when in operation and no halo when off. The grill will stay on for 15 minutes and then automatically switch off unless the user has switched off beforehand. The user can turn on for additional periods once the 15 minutes has expired. The oven will revert to previous setting once the switch is manually or automatically switched off.

5 Year parts warranty, 1 Year labour warranty

Our quality promise – for peace of mind all X-Squared systems come with a full 5 year parts warranty and 12 month labour warranty offer by ourselves the manufacturer. This warranty is extended to the agent purchasing the control system. Terms & conditions do apply so please inform yourself of these in advance of making any warranty claim or request for assistance. To be valid it is mandatory that all kits are registered on our warranty system either through the eControl Installer App or manually through the link.

*We also offer an extended warranty plan direct to end users for a total of £500 for full coverage (5 years parts and labour) or £12 p/m.
